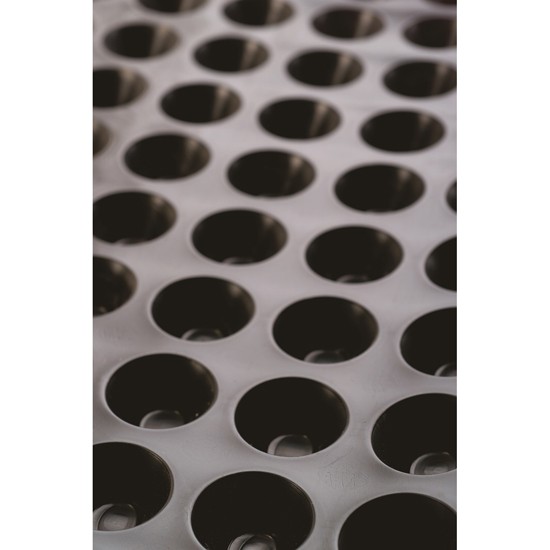

DRENTEX PROTECT MAXI is a high density polyethylene (HDPE) dimpled sheet.

Technical documentation

  • Logo Facebook
  • Logo Twitter
  • Logo Linkedin
  • Advantages
  • Application
  • Installation
  • Regulations
· Easy to install membrane, with no need for specialized labor or equipment
· Membranes with high adaptability to supports, allowing easy cutting with a knife.
· Easy to overlap
· Durable and resistant to compression.
· Micro-organism resistant
· Resistant to chemical agents.
· Resistant to roots
· Does not contaminate groundwater.
· Allows evaporation of water between layers
· It conducts water through flooring, placed in ventilated and insulated floors, provides air circulation between the dimples, improving watertightness and load distribution on the pavement.
· Protection of Flooring:
· Spread a layer of ROOFTEX 400 / TEXXAM 1000 with a 20 cm overlap, on top of the ground that has already been cleaned and leveled
· Spread DRENTEX PROTECT MAXI and overlap by fitting the dimples together like buttons with the dimples on one membrane fitting into the dimples on the other.
· Lay the mesh on top of DRENTEX PROTECT MAXI, using separators.
· Pour the concrete. The pavement will be protected from the moisture of the layers and DRENTEX PROTECT MAXI will help stabilize the structure, distributing the load.
· Protection of flooring with waterproofing membrane
· Spread DRENTEX PROTECT MAXI over the base layer of concrete, with the dimples face down.
· Install the self-adhesive waterproofing layer TEXSELF 1.5 (no flame needed) if it must be water tight.
· Spread out the TEXXAM 1500 protective layer, then a layer of reinforced concrete.
· At the latest, it must be recoated in the two weeks following installation.
• Applied horizontally.
• The rolls are extended over the floor and overlapped
• Easy overlapping between sheets due to the dimples fit together like snaps, one inside the other
• Afterwards add the soil or concrete.
· Quality System in accordance with ISO:9001
